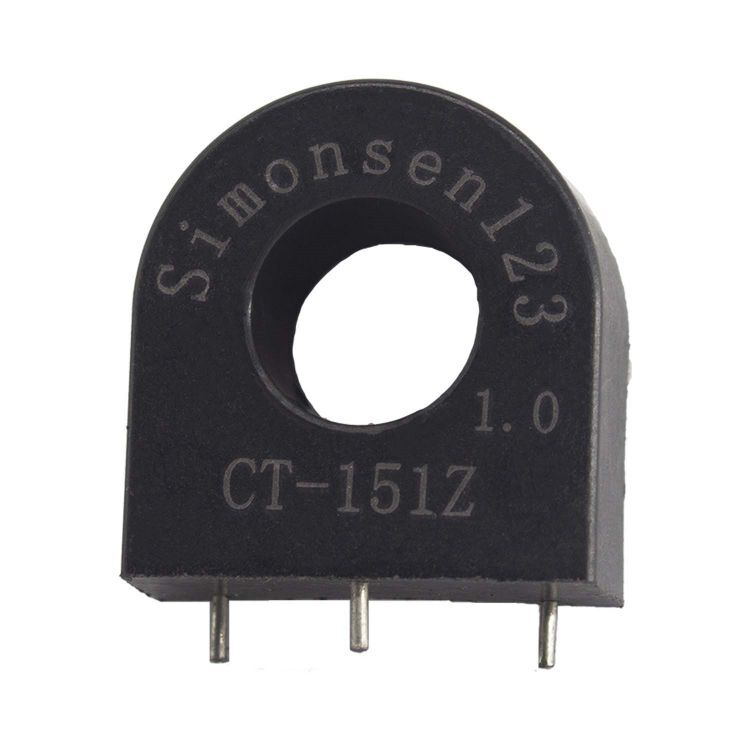

80A/80mA 100A/50mA CT-151Z Current Transformer

80a/80ma 100a/50ma ct 151z current transformer
  1. Application: electronic energymeter, instrument, current sensor, PDU, switch power, induction cooker, charging pile, control board etc.
  2. Reliability: epoxy resinfor long time ,Compatible with RoHS,REACH and ISO9001:2015

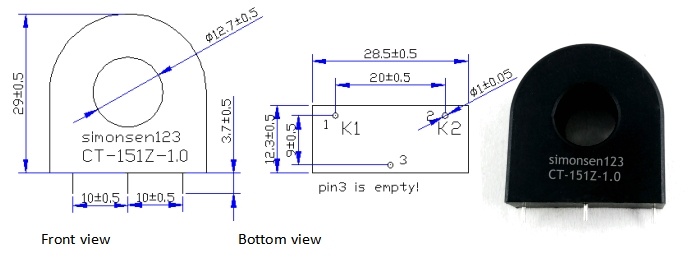

  3. Dimension:(mm)

80a/80ma 100a/50ma ct 151z current transformer

4.Performance Parameter:

Model NO Rated Input Current Turns Ratio Rated Output Current Load Resistor Out Voltage Accuracy Permissible Error Phase Angel Error Max Current
CT-151Z-1.0 0~80A 1000：1 0~80mA ≤50Ω ≤4.0V ≥0.1% ≤0.1% ≤25’ 80A
CT-151Z-2.0 0~100A 2000：1 0~50mA ≤50Ω ≤2.5V ≥0.1% ≤0.1% ≤25’ 100A



  1. Security Parameters:

Isolation Voltage: Primary Winding and Secondary Winding：3KV/2mA/60Sec;

Insulation Conductor：≥500MΩ  /500V DC; Inflaming Retarding: UL94-V0;

Operating Temperature: -40℃~+85℃ Humidity ≤95% Frequency Range: 50~60HZ

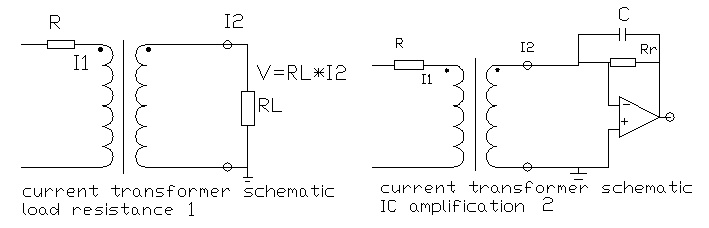

6.Electronic Schematics:

80a/80ma 100a/50ma ct 151z current transformer
