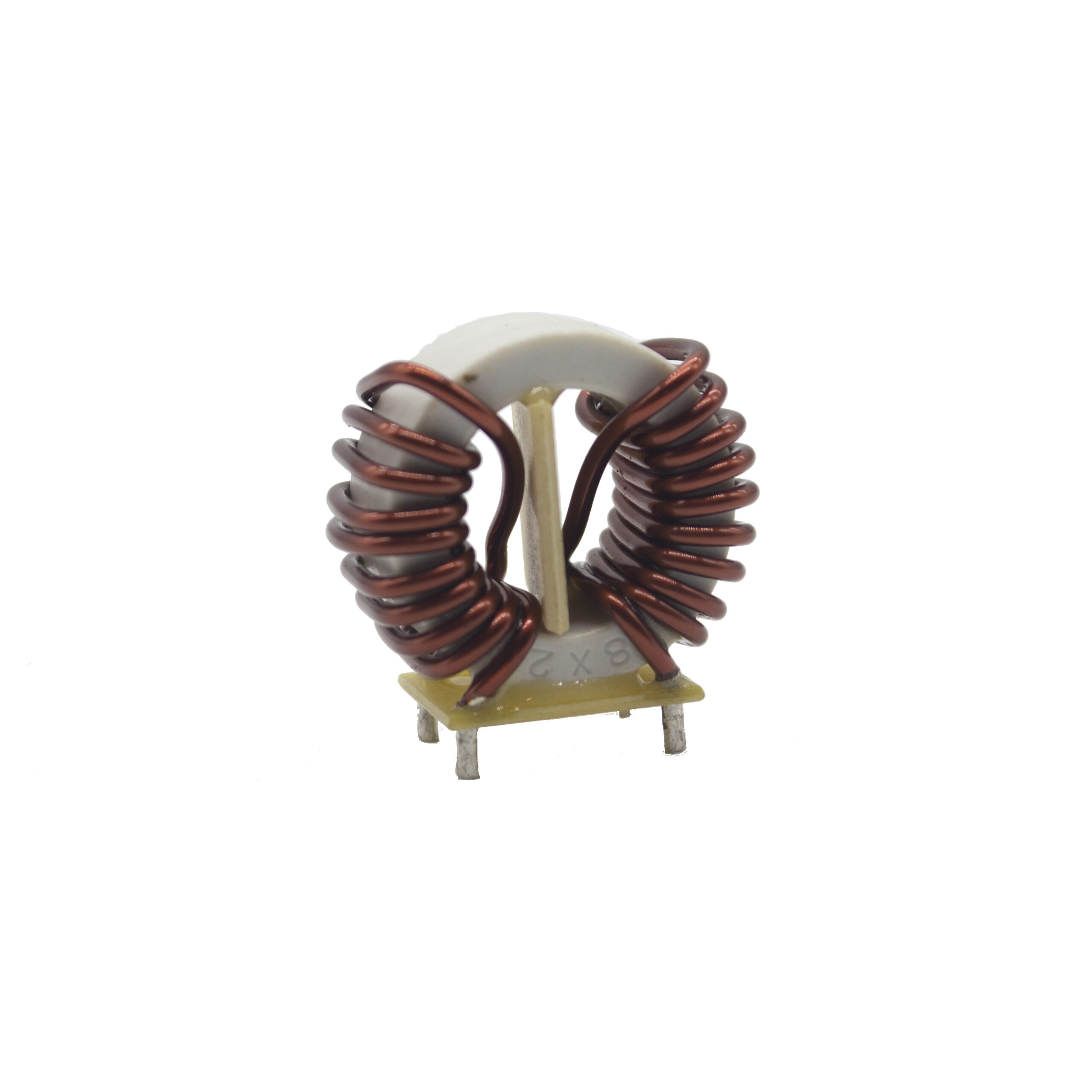

WJCI-619D 1.5mH/8A EMC and EMI Inductor coil

 5/5

Information

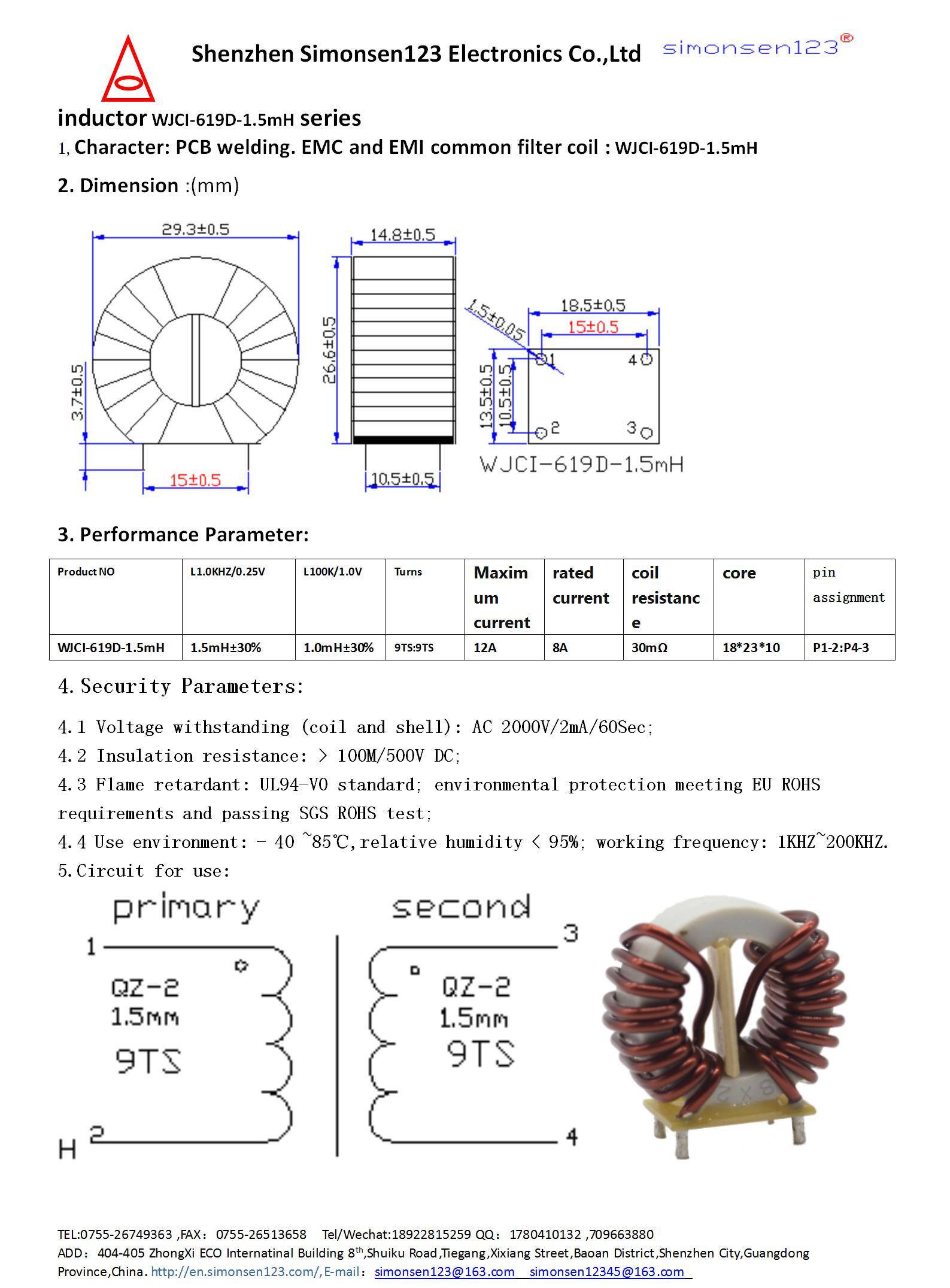

1,Character: PCB welding. EMC and EMI common mode filter coil :WJCI-619-2.0mH

3. Performance Parameter:

Product NO	L1.0KHZ/0.25V	L100K/1.0V	Turns	Maximum current	rated current	coil resistance	core	pin assignment
WJCI-619D-1.5mH	1.5mH±30%	1.0mH±30%	9TS:9TS	12A	8A	30mΩ	182310	P1-2:P4-3

4.Security Parameters:

4.1 Voltage withstanding (coil and shell): AC 2000V/2mA/60Sec;

4.2 Insulation resistance: > 100M/500V DC;

4.3 Flame retardant: UL94-V0 standard; environmental protection meeting EU ROHS requirements and passing SGS ROHS test;

4.4 Use environment: – 40 ~85℃,relative humidity < 95%; working frequency: 1KHZ~200KHZ
