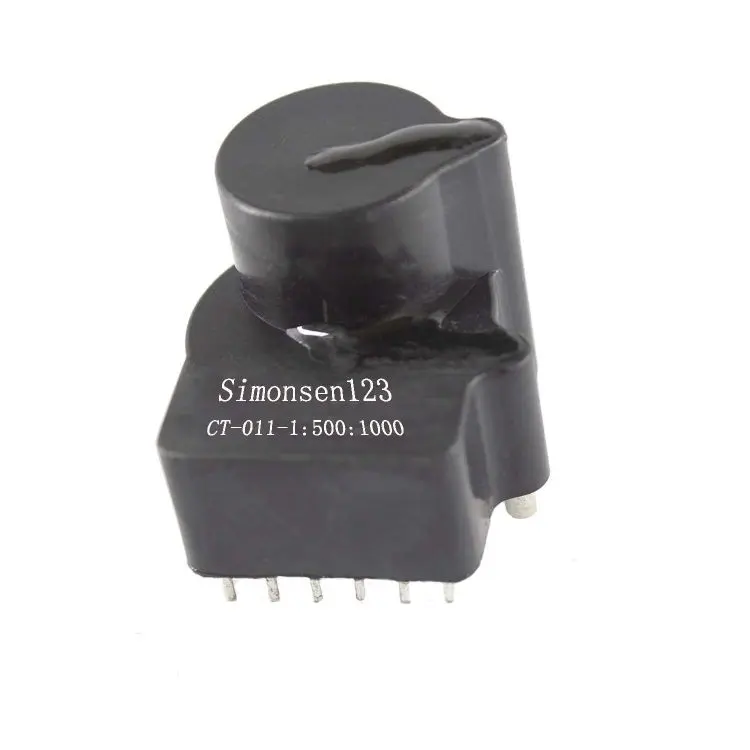

Simonsen123 36A/20mA 15mA/30uA 6mA/6uA CT-011 Transformer Current For AC DC Leakage Current Detection
Product Description
Product Description
If you can't find the product you need on our website, please tell us your specific needs, we can quote and product for you

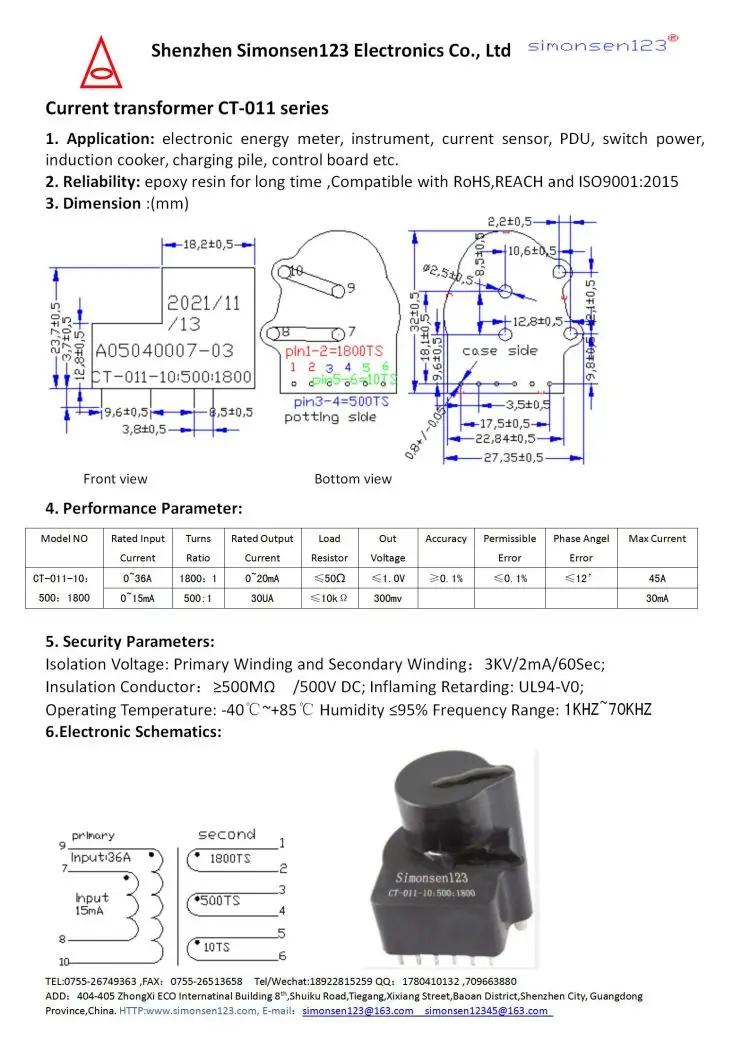

Current TransformerCT-011Series
1.Application: electronic energy meter,Instrument,Current sensor,PDU,Switch power,Induction cooker,Charging tile,Control board etc.
2.Reliability: epoxy resin for long time,Compatible with RoHS,REACH and ISO9001:2015
4.Performance Parameters:
|
Model NO |
Rated Input Current |
Turns Ratio |
Rated Output Current |
Load Resistor |
Out Voltage |
Accuracy |
Permissible error |
Phase Angel Error |
Max Current |
|
CT-011-10:500:1800 |
0 ~ 36A |
1800:1 |
0 ~ 20mA |
≤ 50Ω |
≤ 1.0V |
≥ 0.1% |
≤ 0.1% |
≤ 12' |
45A |
|
0 ~ 15mA |
500:1 |
30UA |
≤ 10kΩ |
300mv |
|
|
|
30mA |
|
Model NO |
Rated Input Current |
Turns Ratio |
Rated Output Current |
Load Resistor |
Out Voltage |
Accuracy |
Permissible error |
Phase Angel Error |
Max Current |
|
CT-011-1: 500:1800 |
0 ~ 36A |
1800:1 |
0 ~ 20mA |
≤ 50Ω |
≤ 1.0V |
≥ 0.1% |
≤ 0.1% |
≤ 12' |
84A |
|
0 ~ 15mA |
500:1 |
30UA |
≤ 10kΩ |
300mv |
|
|
|
30mA |
|
Model NO |
Rated Input Current |
Turns Ratio |
Rated Output Current |
Load Resistor |
Out Voltage |
Accuracy |
Permissible error |
Phase Angel Error |
Max Current |
|
CT-011-1: 100:1800 |
0 ~ 36A |
1800:1 |
0 ~ 20mA |
≤ 50Ω |
≤ 1.0V |
≥ 0.1% |
≤ 0.1% |
≤ 12' |
84A |
|
0 ~ 6mA |
100:1 |
6UA |
≤ 10kΩ |
60mv |
10KHZ/inputAC/DC6mA |
10mA |
|||
5.Security Parameters:
Isolation Voltage: Primary Winding and Secondary Winding:3KV/2mA/60Sec;
Insulation Conductor:≥ 500MΩ/500V DC; Inflaming Retarding: UL94-V0;
Operating Temperature: -40°C~ + 85°CHumidity ≤ 95% Frequency Range:1KHZ~70KHZ
