200A 300A/100mA K016CT Current Transformer

200a 300a/100ma k016ct current transformer
  1. Application: electronic energymeter, instrument, current sensor, PDU, switch power, induction cooker, charging pile, control board etc.
  2. Reliability: epoxy resinfor long time ,Compatible with RoHS,REACH and ISO9001:2015

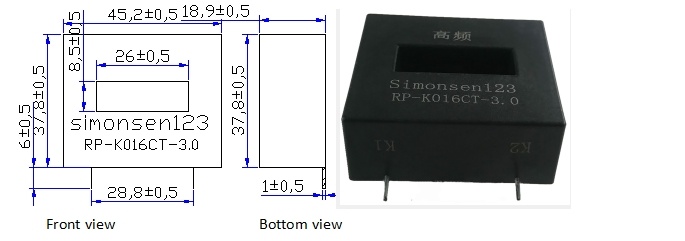

  3. Dimension:(mm)

200a 300a/100ma k016ct current transformer

4.Performance Parameter:

Model NO Rated Input Current Turns Ratio Rated Output Current Load Resistor Out Voltage Accuracy Permissible Error Phase Angel Error Max Current
RP-K016CT-2.0 0~200A 2000：1 0~100mA ≤20Ω 2.0V ≥0.1% ≤0.1% ≤10’ 250A
RP-K016CT-3.0 0~300A 3000：1 0~10mA ≤20Ω 2.0V ≥0.1% ≤0.1% ≤10’ 400A
RP-K016CT-2.0  L=1.8~2.5H±20% 1KHZ/0.25V RP-K016CT-3.0  L=5.6H ±20% 1KHZ/0.25V



  1. Security Parameters:

Isolation Voltage: Primary Winding and Secondary Winding：3KV/2mA/60Sec;

Insulation Conductor：≥500MΩ  /500V DC; Inflaming Retarding: UL94-V0;

Operating Temperature: -40℃~+85℃ Humidity ≤95% Frequency Range: 15KHZ~70KHZ

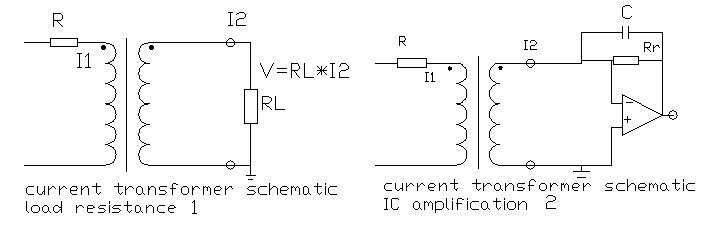

6.Electronic Schematic

200a 300a/100ma k016ct current transformer
