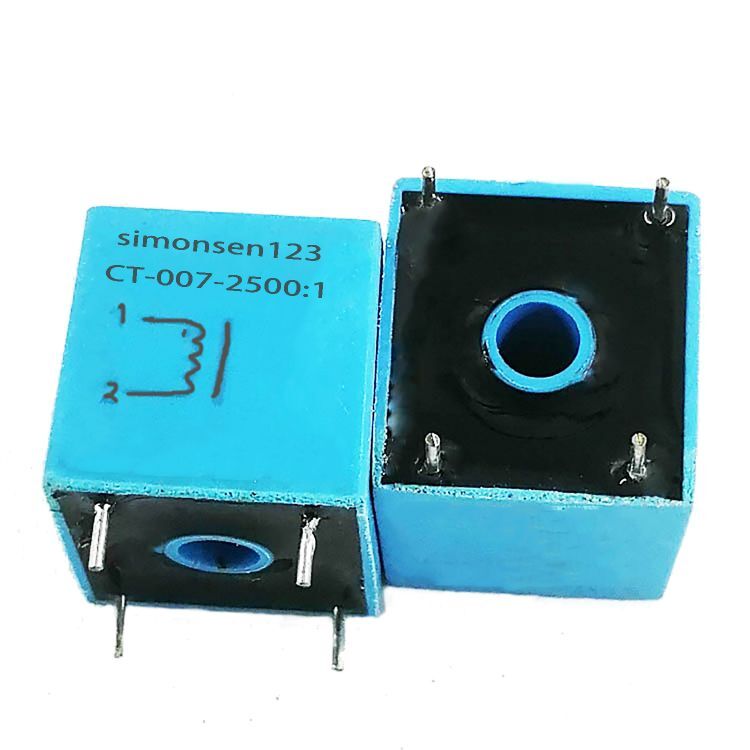

CT-007B 10A/8mA Voltage Current Transformer / / Shenzhen Simonsen123 Electronics

Application: electronic energymeter, instrument, current sensor, PDU, switch power, , charging pile, control board, voltage measure etc.
Reliability: epoxy resinfor long time ,Compatible with RoHS,REACH and ISO9001:2015

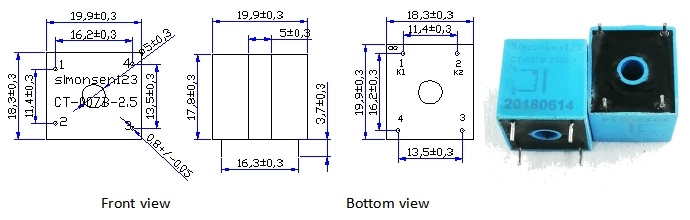

Dimension:(mm)

Model NO	Rated Input Current	Turns Ratio	Rated Output Current	Load Resistor	Out Voltage	Accuracy	Permissible Error	Phase Angel Error	Max Current
CT-007B-2.5	0~10A	2500:1	0~8mA	≤10Ω	≤80mV	≥0.1%	≤0.1%	≤10’	20A

Isolation Voltage: Primary Winding and Secondary Winding：3KV/2mA/60Sec;

Insulation Conductor：≥500MΩ /500V DC; Inflaming Retarding: UL94-V0;

Operating Temperature: -40℃~+85℃ Humidity ≤95% Frequency Range: 1KHZ~70KHZ

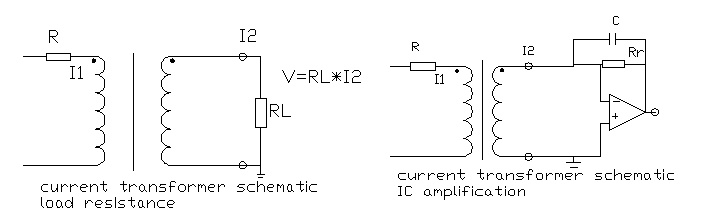

6.Electronic Schematics:

CT-007B 10A/8mA Voltage Current Transformer
