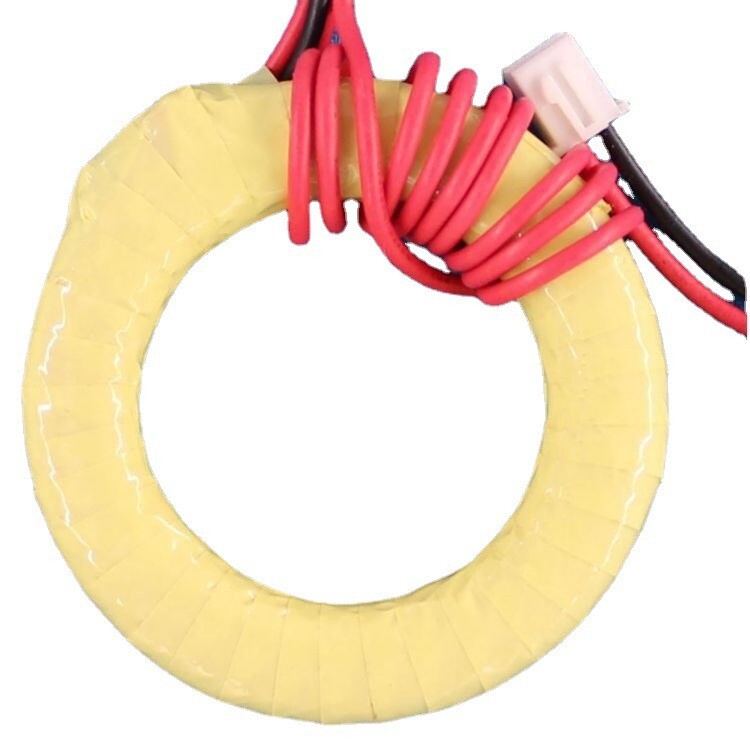

Ct-029 15mA/6.81uA Zero Phase Current Transformer / / Shenzhen Simonsen123 Electronics

Application: electronic energymeter, instrument, current sensor, PDU, switch power, induction cooker, charging pile, control board etc.
Reliability: epoxy resinfor long time ,Compatible with RoHS,REACH and ISO9001:2015

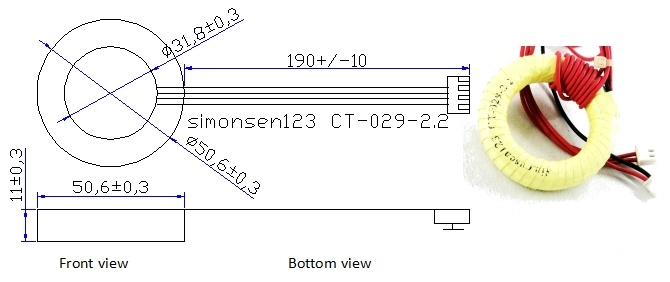

Dimension:(mm)

Model NO	Rated Input Current	Turns Ratio	Rated Output Current	Load Resistor	Out Voltage	Accuracy	Permissible Error	Phase Angel Error	Max Current
CT-029-2.2	0~15mA	2200：10	0~6.81mA	≤10KΩ	≤33mV	≥0.1%	≤0.1%	≤5’	60mA

Isolation Voltage: Primary Winding and Secondary Winding：3KV/2mA/60Sec;

Insulation Conductor：≥500MΩ /500V DC; Inflaming Retarding: UL94-V0;

Operating Temperature: -40℃~+85℃ Humidity ≤95% Frequency Range: 50~60HZ

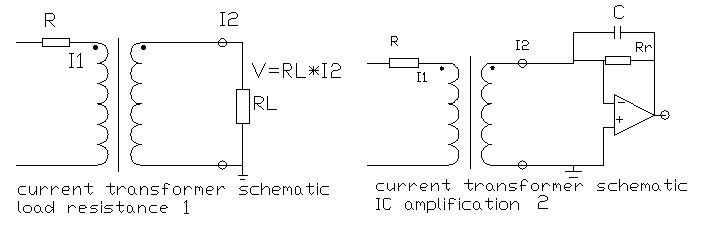

6.Electronic Schematics

Ct-029 15mA/6.81uA Zero Phase Current Transformer
