| Model NO | Rated Input Current | Turns Ratio | Rated Output Current | Load Resistor | Out Voltage | Accuracy | Permissible Error | Phase Angel Error | Max Current |
| CT-002-2.0 | 0~40A | 2000：1 | 0~20mA | ≤50Ω | ≤1.0V | ≥0.1% | ≤0.1% | ≤6’ | 56A/1KHZ~70KHZ |
| CT-002B-2.0 | 0~40A | 2000：1 | 0~20mA | ≤50Ω | ≤1.0V | ≥0.1% | ≤0.1% | 3’ | 56A/1KHZ~70KHZ |
| CT-002Z-1.0 | 0~100A | 1000：1 | 0~100mA | ≤10Ω | ≤1.0V | ≥0.1% | ≤0.1% | ≤15’ | 200A/50~60HZ |
Isolation Voltage: Primary Winding and Secondary Winding：3KV/2mA/60Sec;
Insulation Conductor：≥100MΩ /500V DC; Inflaming Retarding: UL94-V0;
Operating Temperature: -40℃~+85℃ Humidity ≤95%

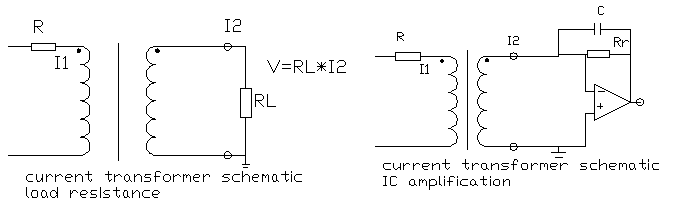

6.Electronic Schematics:
