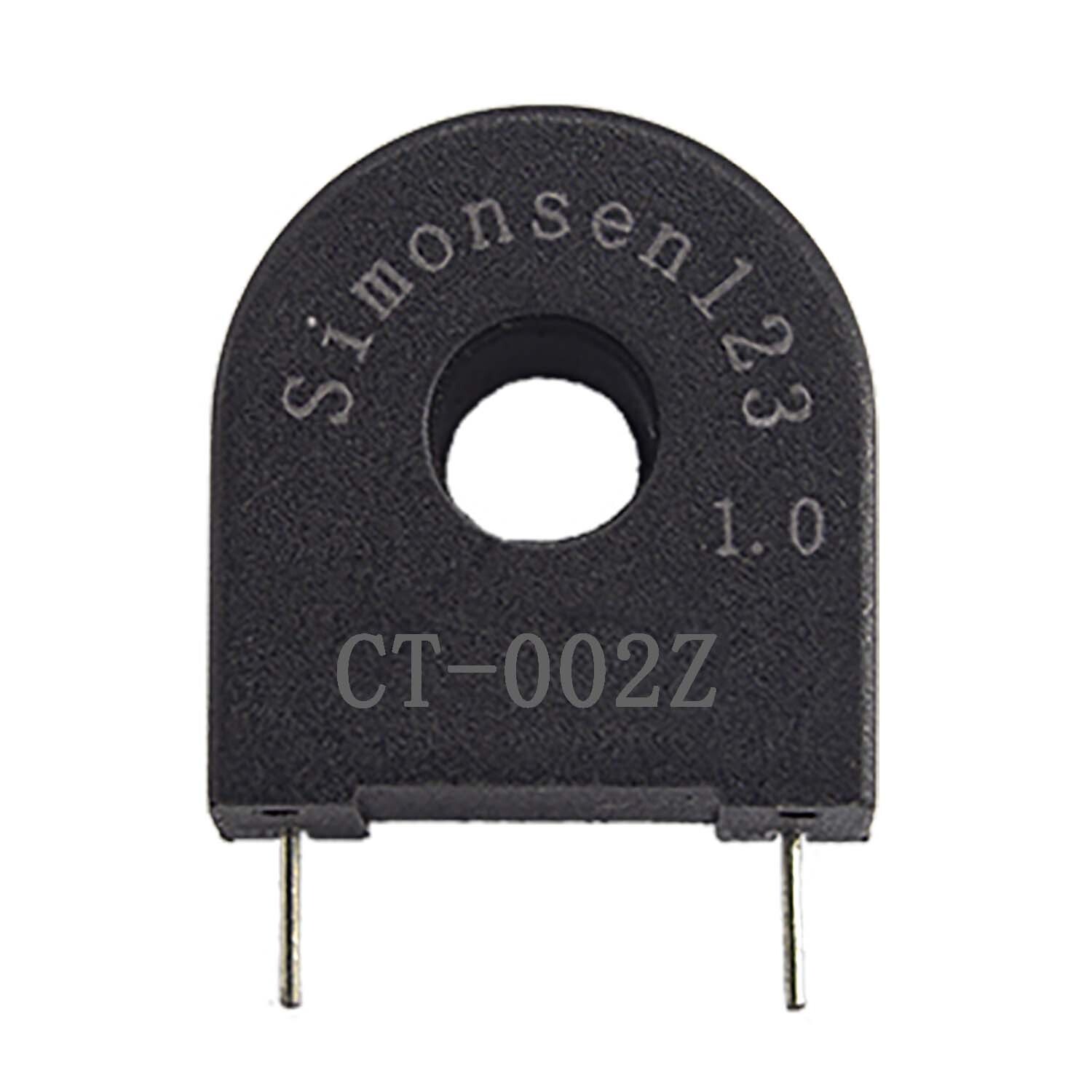

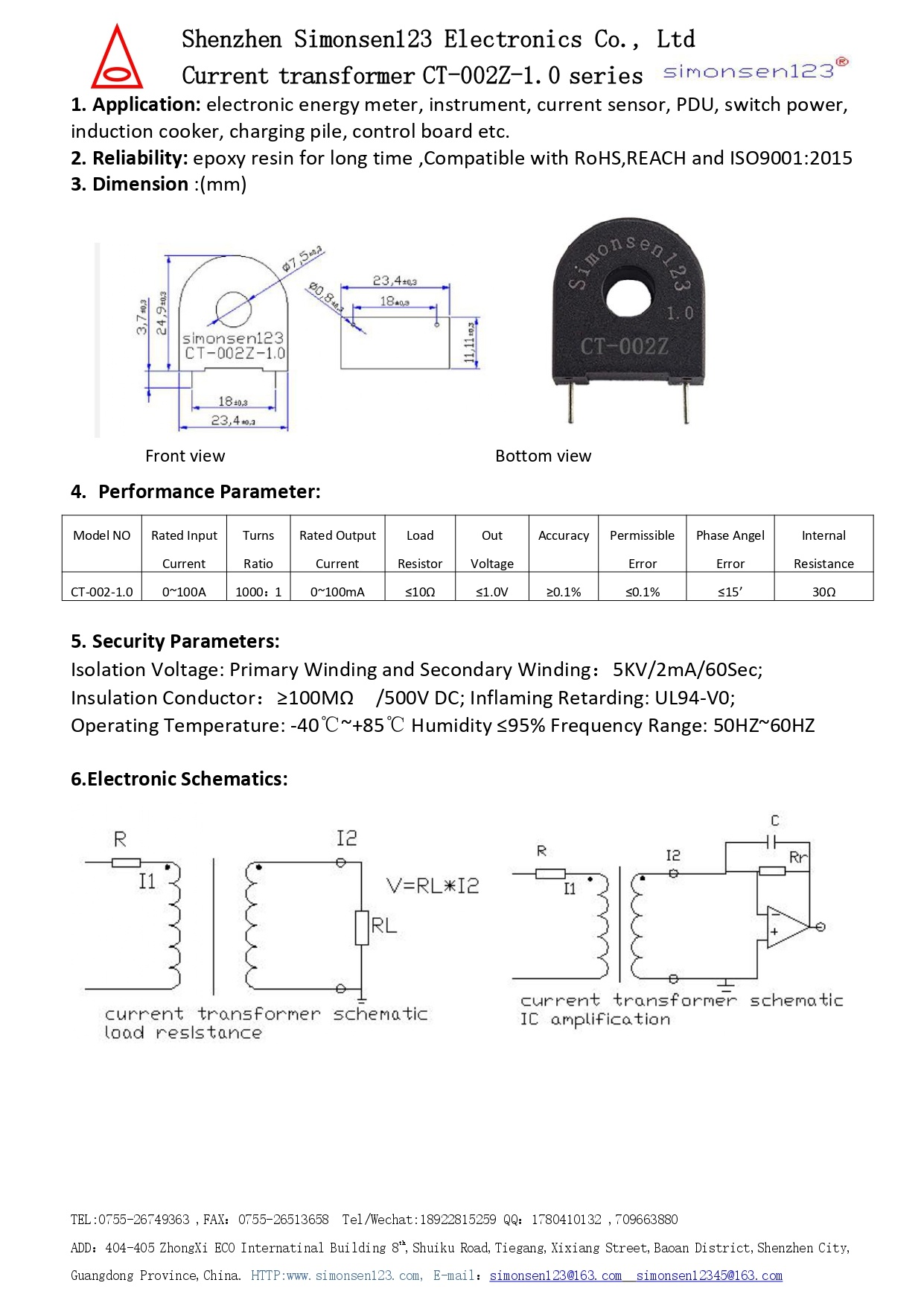

Current transformer CT-002Z-1.0100A/100mA series / / Shenzhen Simonsen123 Electronics

Application: electronic energymeter, instrument, current sensor, PDU, switch power, induction cooker, charging pile, control board etc.
Reliability: epoxy resinfor long time ,Compatible with RoHS,REACH and ISO9001:2015

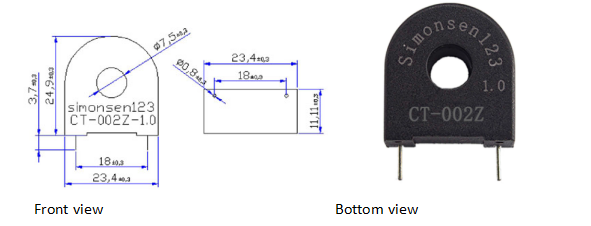

Dimension:(mm)

Model NO	Rated Input Current	Turns Ratio	Rated Output Current	Load Resistor	Out Voltage	Accuracy	Permissible Error	Phase Angel Error	Internal Resistance
CT-002-1.0	0~100A	1000：1	0~100mA	≤10Ω	≤1.0V	≥0.1%	≤0.1%	≤15’	30Ω

Isolation Voltage: Primary Winding and Secondary Winding：5KV/2mA/60Sec;

Insulation Conductor：≥100MΩ /500V DC; Inflaming Retarding: UL94-V0;

Operating Temperature: -40℃~+85℃ Humidity ≤95% Frequency Range: 50HZ~60HZ

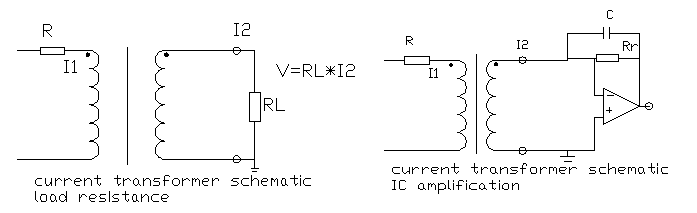

6.Electronic Schematics:

Current transformer CT-002Z-1.0100A/100mA series
