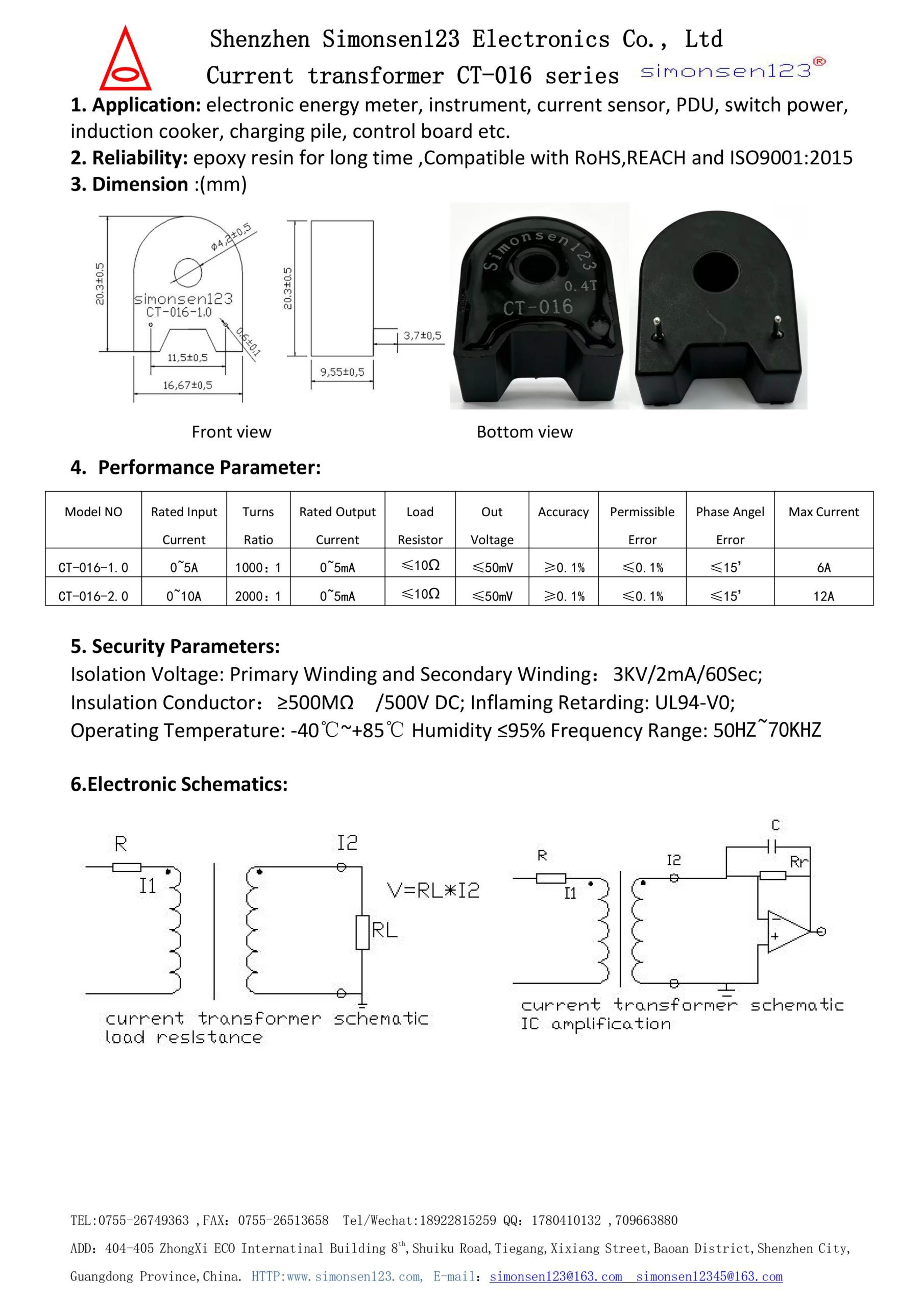

Current transformer CT-016-1.0 5A/5mA series

current transformer ct 016 series
current transformer ct 016 series
  1. Application: electronic energy meter, instrument, current sensor, PDU, switch power,induction cooker, charging pile, control board etc.
  1. Reliability: epoxy resinfor long time ,Compatible with RoHS,REACH and ISO9001:2015

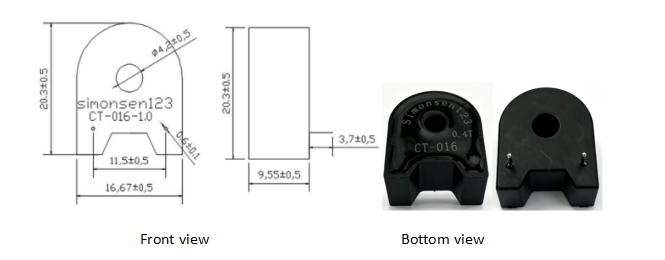

  2. Dimension:(mm)

current transformer ct 016 series

4.Performance Parameter:

Model NO Rated Input Current Turns Ratio Rated Output Current Load Resistor Out Voltage Accuracy Permissible Error Phase Angel Error Max Current
CT-016-1.0 0~5A 1000：1 0~5mA ≤10Ω ≤50mV ≥0.1% ≤0.1% ≤15’ 6A
CT-016-2.0 0~10A 2000：1 0~5mA ≤10Ω ≤50mV ≥0.1% ≤0.1% ≤15’ 12A



5.Security Parameters:

Isolation Voltage: Primary Winding and Secondary Winding：3KV/2mA/60Sec;

Insulation Conductor：≥500MΩ  /500V DC; Inflaming Retarding: UL94-V0;

Operating Temperature: -40℃~+85℃ Humidity ≤95% Frequency Range: 50HZ~70KHZ

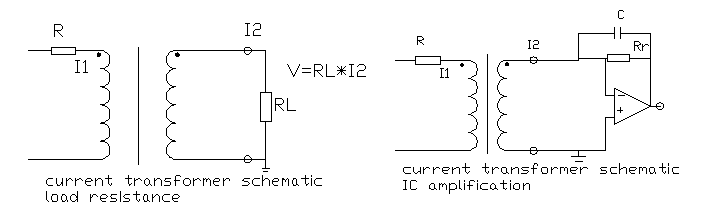

6.Electronic Schematics:

current transformer ct 016 series
