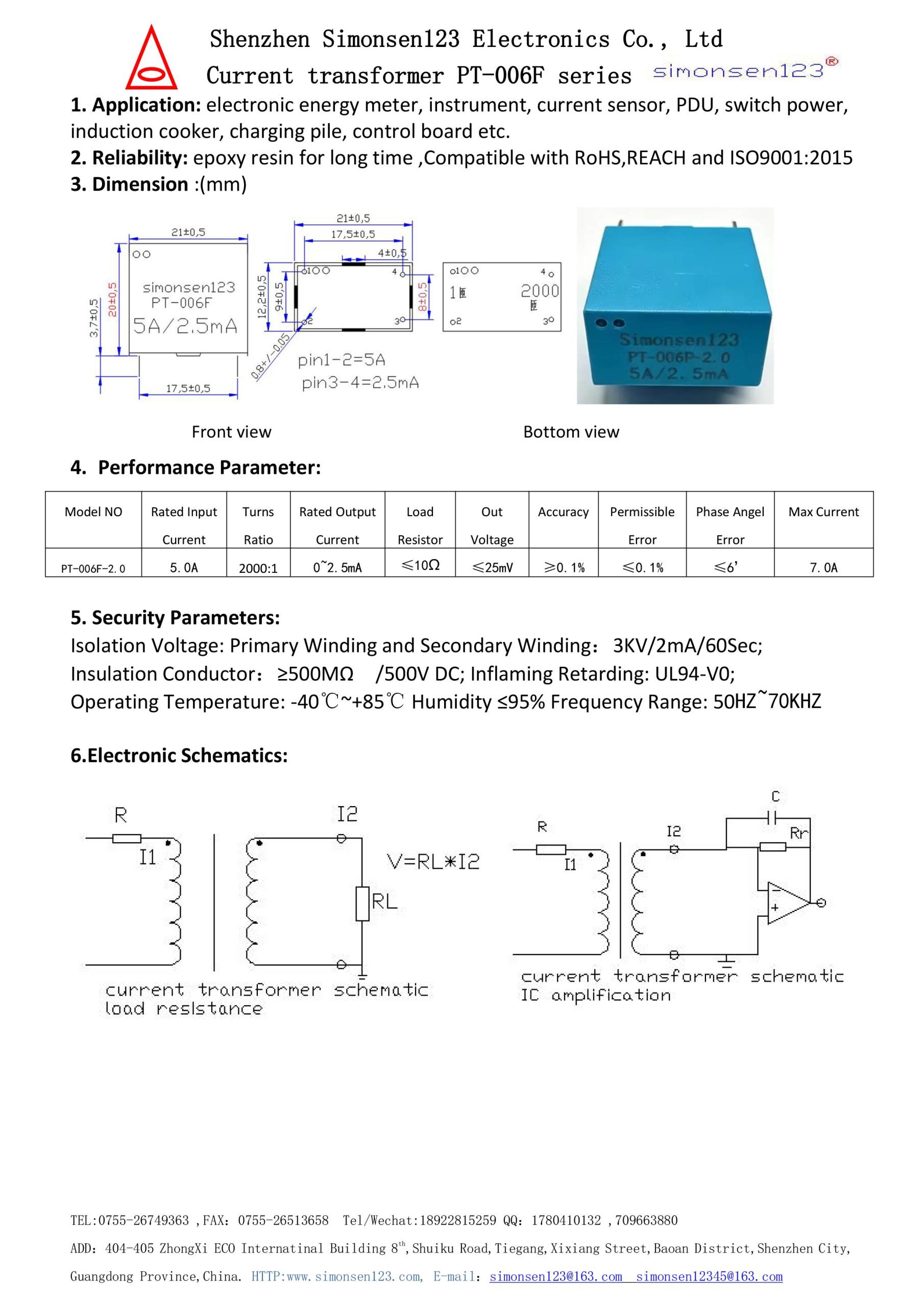

Current transformer PT-006 5A/2.5mA series / / Shenzhen Simonsen123 Electronics

Application: electronic energymeter, instrument, current sensor, PDU, switch power, induction cooker, charging pile, control board etc.
Reliability: epoxy resinfor long time ,Compatible with RoHS,REACH and ISO9001:2015

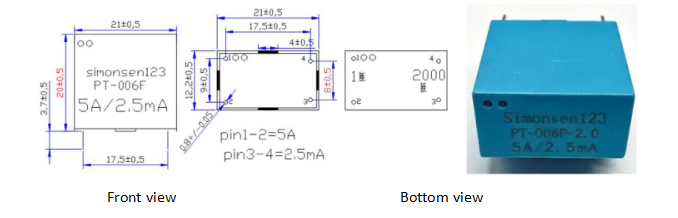

Dimension:(mm)

4.Performance Parameter:

Model NO	Rated Input Current	Turns Ratio	Rated Output Current	Load Resistor	Out Voltage	Accuracy	Permissible Error	Phase Angel Error	Max Current
CT-006-2.0	5.0A	2000：1	0~2.5mA	≤10Ω	≤25mV	≥0.1%	≤0.1%	≤6’	7.0A

Isolation Voltage: Primary Winding and Secondary Winding：3KV/2mA/60Sec;

Insulation Conductor：≥500MΩ /500V DC; Inflaming Retarding: UL94-V0;

Operating Temperature: -40℃~+85℃ Humidity ≤95% Frequency Range: 50HZ~70KHZ

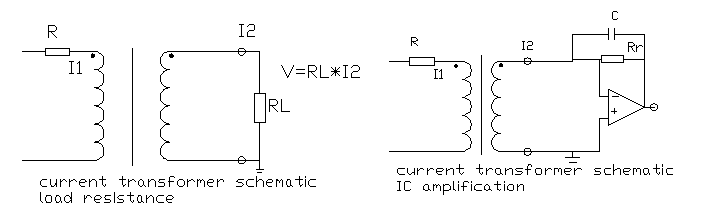

6.Electronic Schematics:

Current transformer PT-006 5A/2.5mA series
