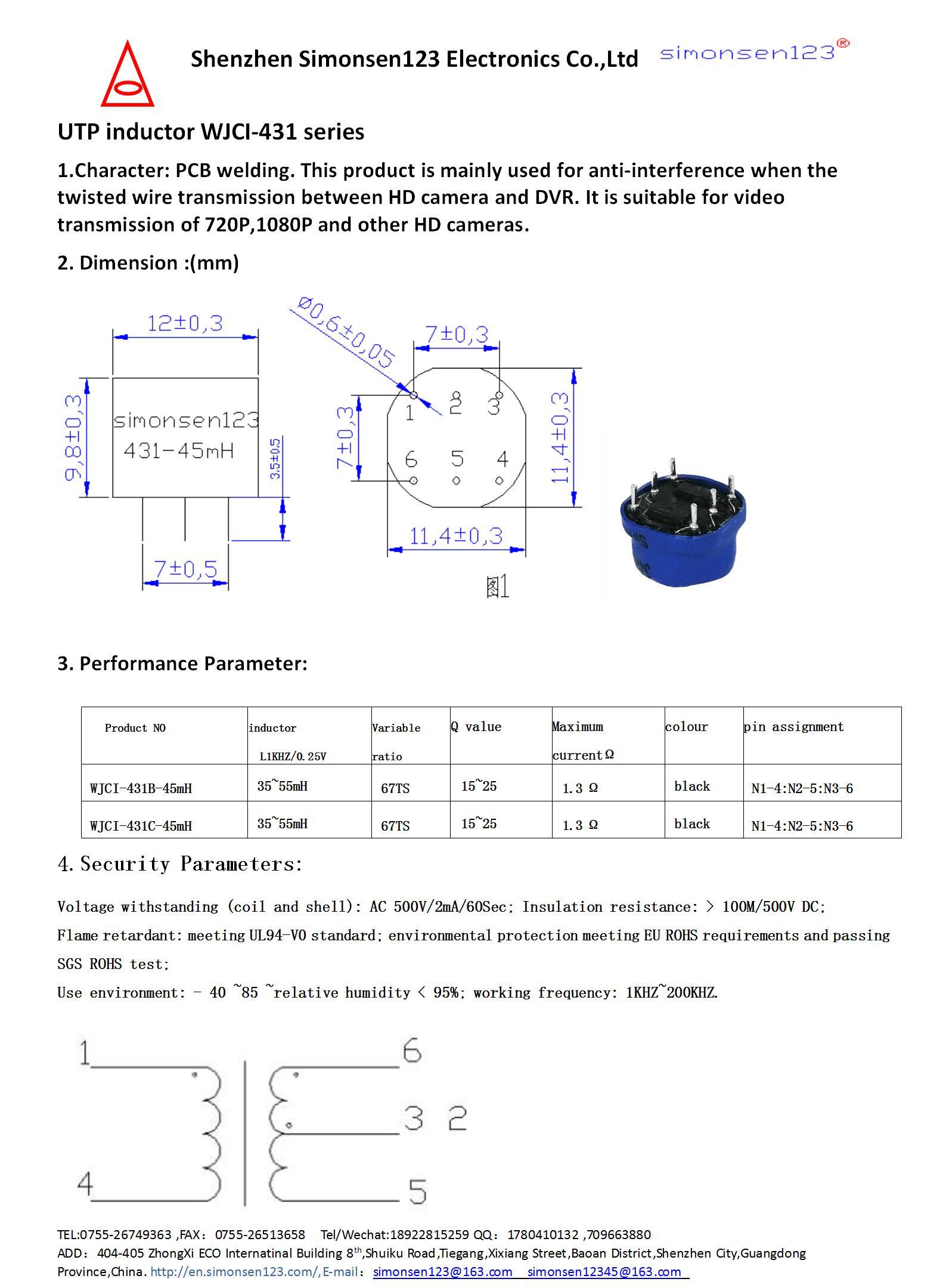

1.Character: PCB welding. This product is mainly used for anti-interference when the twisted wire transmission between HD camera and DVR. It is suitable for video transmission of 720P,1080P and other HD cameras.
3. Performance Parameter:
Product NO |
inductor L1KHZ/0.25V |
Variable ratio |
Q value |
Maximum currentΩ |
colour |
pin assignment |
WJCI-431B-45mH |
35~55mH |
67TS |
15~25 |
1.3 Ω |
black |
N1-4:N2-5:N3-6 |
WJCI-431C-45mH |
35~55mH |
67TS |
15~25 |
1.3 Ω |
black |
N1-4:N2-5:N3-6 |
4.Security Parameters:
Voltage withstanding (coil and shell): AC 500V/2mA/60Sec; Insulation resistance: > 100M/500V DC;
Flame retardant: meeting UL94-V0 standard; environmental protection meeting EU ROHS requirements and passing SGS ROHS test;
Use environment: – 40 ~85 ~relative humidity < 95%; working frequency: 1KHZ~200KHZ.
