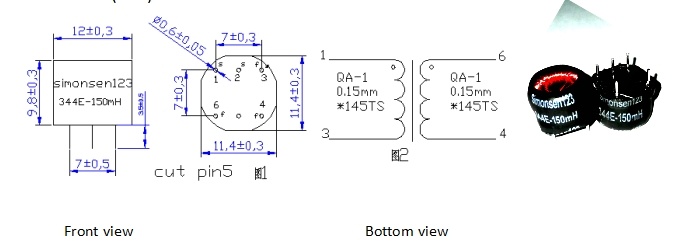

8mh 15 20 33 40 45 80 wjci 344e inductors coils

1.Character: PCB welding. This product is mainly used for anti-interference when the twisted wire transmission between HD camera and DVR. It is suitable for video transmission of 720P,1080P and other HD cameras.

3. Performance Parameter:

Product NO	inductor L1KHZ/0.25V	Variable ratio	Q value	Maximum currentΩ	colour	pin assignment
WJCI-344E-8mH	6~10mH	28TS	5~6	410mΩ	red	N1-6:N 3-4

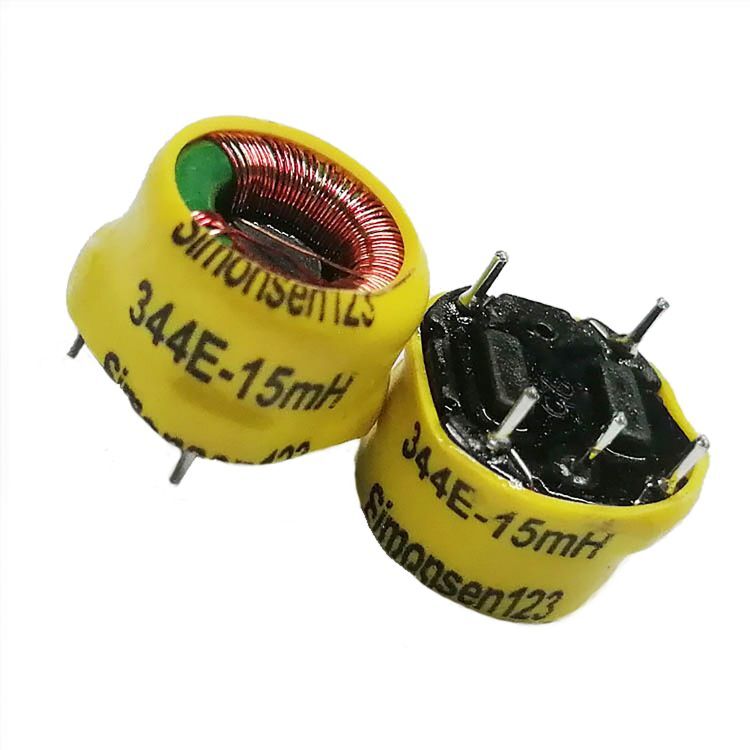

WJCI-344E-15mH	13~18mH	40TS	5~6	650mΩ	Blue/yellow	N1-6:N 3-4
WJCI-344E-20mH	18~22mH	45TS	7~8	800mΩ	Blue/yellow	N1-6:N 3-4
WJCI-344E-33mH	30~36mH	67TS	7~8	907mΩ	yellow	N1-6:N 3-4
WJCI-344EF-40mH	30~50mH	25TS	15~25	300mΩ	white	N1-6:N 3-4
WJCI-344E-45mH	40~50mH	68TS	9~12	1.1Ω	black	N1-6:N 3-4
WJCI-344EF-80mH	70~90mH	42TS	25~40	300mΩ	white	N1-6:N 3-4
WJCI-344E-150mH	120~180mH	140TS	9~15	2.5Ω	black	N1-6:N 3-4
WJCI-344F-150mH	120~180mH	140TS	9~15	2.5Ω	black	N1-3:N 6-4
WJCI-344E-180mH	160~200mH	165TS	9~15	2.9Ω	red	N1-6:N 3-4
WJCI-344PCB-180mH	160~200mH	165TS	9~15	2.9Ω	red	N1-6:N 3-4 PCB
WJCI-344E-200mH	180~220mH	168TS	9~15	3.0Ω	black	N1-6:N 3-4
WJCI-344E-400mH	350~450mH	220TS	15~25	6.0Ω	green	N1-6:N 3-4
WJCI-344EF-400mH	350~450mH	82TS	30~45	1.49Ω	blue	N1-6:N 3-4

4.Security Parameters:

Voltage withstanding (coil and shell): AC 500V/2mA/60Sec; Insulation resistance: > 100M/500V DC;

Flame retardant: meeting UL94-V0 standard; environmental protection meeting EU ROHS requirements and passing SGS ROHS test;

Use environment: – 40 ~85 ~relative humidity < 95%; working frequency: 1KHZ~200KHZ.
